CECON Ozone Generators are Designed, Developed and Manufactured by our in-house technical team. All our ozone generators work based on the most advanced and proven High voltage, High Frequency Corona Discharge Technology for ozone production. We manufacture an extensive range of Ozone Generators from 250 milligrams per hour to 1 kilogram per hour to suit various applications. All our products are Rugged, Field Proven and capable of 24 hours operation
We constantly strive to be in the forefront of technology to provide more value to our customers in terms of Competitive Pricing, Quality, Performance and Safety. We present the facts and eliminate any possibility of exaggeration
CECON offers Air Cooled Ozone Generators for capacities up to 20 grams/hour. The models in the A-series are ready to use, compact and wall mountable units. The air-cooled electrodes used in these models are specially designed in SS with aluminum fins for better heat dissipation. This ensures high ozone output and longer life of the electrode and product

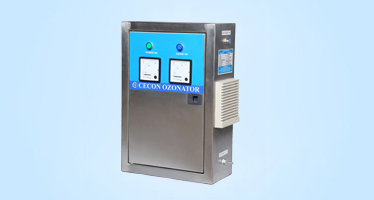

OG - A5

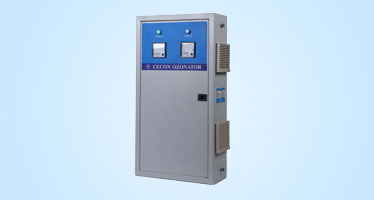

OG - A10
OG – A20
| Model No | Ozone output (Grams/hour) | Oxygen Flow (LPM) | Input Power Supply (Volts) | Power (Watts) | Dimensions (mm) | Net Weight (Kg) |
|---|---|---|---|---|---|---|
| A-5 | 5 | 2.0 | 230 V AC,1Phase 50 Hz | 100 | 450x300x160 | 6 |
| A-10 | 10 | 4.0 | 230 V AC,1Phase 50 Hz | 200 | 600x400x160 | 9 |
| A-20 | 20 | 8.0 | 230 V AC,1Phase 50 Hz | 350 | 600x400x160 | 12 |
| Overall | Air Cooled Models (A- Series) |
|---|---|
| Ozone Output | 250 Milligrams/Hour to 20 Grams/Hour |
| Technology | Corona Discharge Technology |
| Line voltage | 230 Volts AC 50Hz |
| Operating temperature | 0-40°C |
| Humidity | Up to 90% RH |
| MOC of all ozone contact parts | SS/Teflon/ Quartz Glass |
| Feed Gas | |
| Feed Gas Used by the Electrodes | Dry, Filtered Oxygen |
| Method of Feed Gas Generation | Pressure Swing Adsorption |
| Oxygen Purity | > 90% |
| Dew Point Deg C | < -40 |
| Electrode | |
| Type of electrode | Air cooled |
| MOC of electrode | SS 304L/316L |
| Dielectric material | Quartz Glass |
| Power Supply | |
| Power Supply Type | IGBT Based High Voltage High Frequency |
| High Frequency Transformer | Forced Air Cooled Ferrite Core |
| Protections | Fuse |
| Power Amplifier | IGBT Technology |
Our Water-Cooled Ozone Generators are capable of Fully Automatic operation and comes with Advanced Safety Systems. It has an inbuilt Electrical Control Panel for easier monitoring and operation. We only use pure dry oxygen as feed gas for all the models in this series because of higher ozone yield and longer life of the ozone cell and product
These models can be customized to suit customer specific requirements. If you need a simple unit with all the standard and essential safety features, we can provide you the same. So, you don’t have to pay for the features that you won’t need

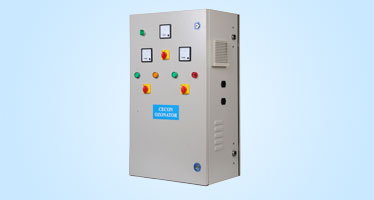

OG – W 50

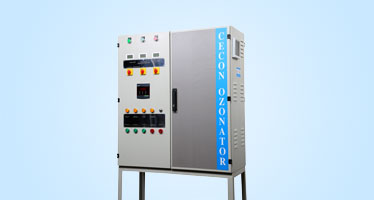

OG – W 100
| Model No | Ozone output (Grams/hour) | Oxygen Flow (LPM) | Input Power Supply (Volts) | Power (Watts) | Dimensions (mm) | Net Weight (Kg) |
|---|---|---|---|---|---|---|
| W-25 | 25 | 5 | Single Phase 230 V 50 Hz | 375 | 450x300x750 | 20 |
| W-50 | 50 | 10 | Single Phase 230 V 50 Hz | 700 | 600x400x160 | 25 |
| W-75 | 75 | 15 | 3 Phase 400 V AC 50 Hz | 1000 | 900x350x1000 | 35 |
| W-100 | 100 | 20 | 3 Phase 400 V AC 50 Hz | 1250 | 900x350x1000 | 40 |
| W-150 | 150 | 30 | 3 Phase 400 V AC 50 Hz | 1850 | --- | 60 |
| W-200 | 200 | 40 | 3 Phase 400 V AC 50 Hz | 2500 | --- | 80 |
| W-300 | 300 | 50 | 3 Phase 400 V AC 50 Hz | 3750 | --- | 120 |
| Overall | Water Cooled Models (W- Series) |
|---|---|
| Ozone Output | 25 Grams/Hour to 1 Kg/Hour |
| Technology | Corona Discharge Technology |
| Line voltage | 230 / 400 Volts AC 50 Hz |
| Operating temperature | 0-40°C |
| Humidity | Up to 90% RH |
| MOC of all ozone contact parts | SS/Teflon/Glass |
| Feed Gas | |
| Feed Gas Used by the Electrodes | Dry, Filtered Oxygen |
| Method of Feed Gas Generation | Pressure Swing Adsorption |
| Oxygen Purity | > 90% |
| Dew Point Deg C | < -40 |
| Electrode | |
| Type of electrode | Water cooled |
| MOC of electrode | SS 304L/316L |
| Dielectric material | Quartz Glass |
| Power Supply | |
| Power Supply Type | IGBT Based High Voltage High Frequency |
| High Frequency Transformer | Forced Air Cooled Ferrite Core |
| Protections | Fuse |
| Power Amplifier | IGBT Technology |

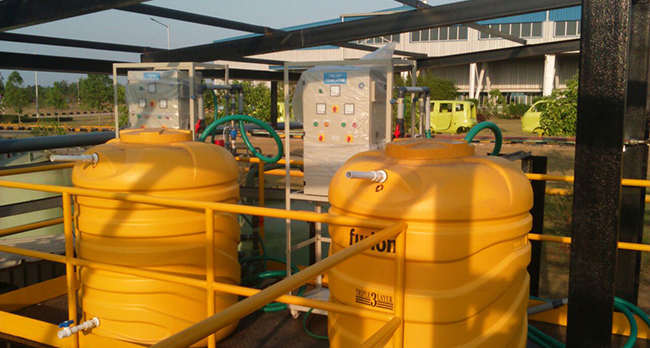

CECON Skid Mounted Ozonation System is a Complete Integrated
System that provides many user advantages. CECON Ozonation
Systems are available in both air cooled and water-cooled
ozonator models. It consists of all the basic supplies (e.g.
oxygen concentrators, venturi injector with NRv etc)
required for efficient and effective operation of the
ozonation system. The scope of supply depends on the type of
application and the existing plant layout
We will work with you to understand your specific requirements and suggest suitable solutions. We can also customize the system to ensure you get exactly what you want. This is an important reason for our competitive pricing
100 grams/hour
